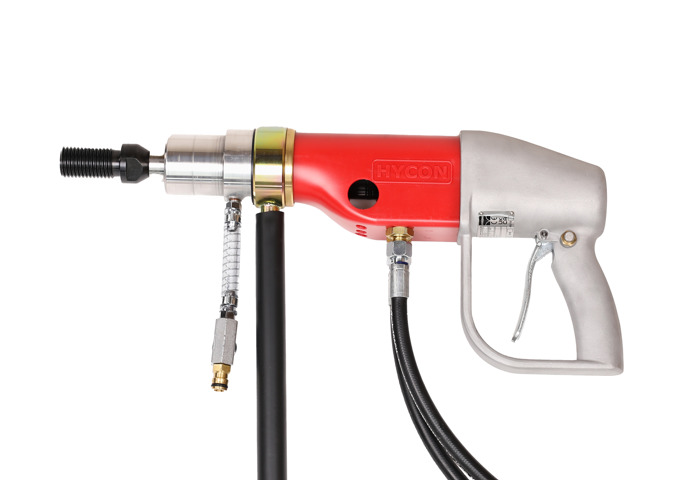

Underwater Handheld Hydraulic Core Drill HCD50-200
The HCD50-200 Underwater core drill is the most powerful and easily manageable handheld underwater core drill available. The HCD50-200 is extremely easy to use and will drill through any material. There is no need for a drill rig. However, the HCD50-200 fits in a standard drill rig with a 60 mm flange for more demanding jobs.
The core drill has a built-in hydraulic torque limiter, ensuring max torque and no kickback if the core bit jams.
Technical data
Item no.
3030050-02
Weight [kg]
7.8
Corebit diameter Ø [mm]
50-200
Oil flow [LPM]
20
Working pressure [bar]
100
Max pressure [bar]
172
Rotation max [rpm]
600
Sound power level LWa [dB]
84
Vibration level, 3 axis [m/s2]
< 2.5
CE approval
Download
HCD50-200 Product Sheet
