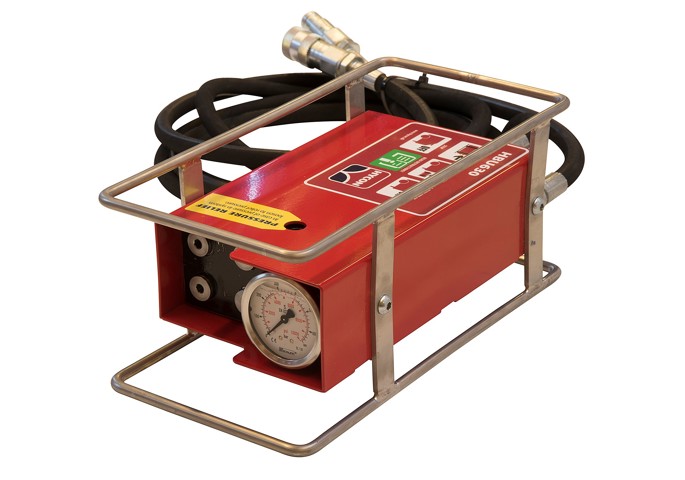

HYCON Hydraulic Pressure Booster
Use the HYCON HBU630 booster to increase pressure and possibilities of use.
The HYCON pressure booster will be a perfect add-on to your set of hydraulic tools. It opens the possibility of using high-pressure tools such as the Darda splitters.
Applications & Tools
Combined and operated from a standard power pack, the HBU630 is perfect for powering rescue tools and silenced & dustless demolition tools for jobs that at the same time require the use of standard hydraulic tools such as core drills, cut-off saws, breakers, or rock drills.
Specification & Features
- Increases pressure by up to 630 bar (adjustable)
- Connect to any 20 lpm power pack or hydraulic outlet
- Intensification factor 1:10
- Low input pressure, reduced heating
- Operates any high-pressure tools such as splitters, crushers, cutters, or concrete bursters
Item no.
3030080
Weight [kg]
14
Dimensions, L x W x H [mm]
340 x 170 x 150
Oil flow [LPM]
20
Max pressure [bar]
170
Working pressure [bar]
60-90
Max pressure out (adjustable) [bar]
630
Oil flow out [LPM]
1.2 - 5
Cooling capacity needed [kW]
2.7
Download
HBU630 Product Sheet
