Underwater Handheld Hydraulic Core Drill HCD25-100

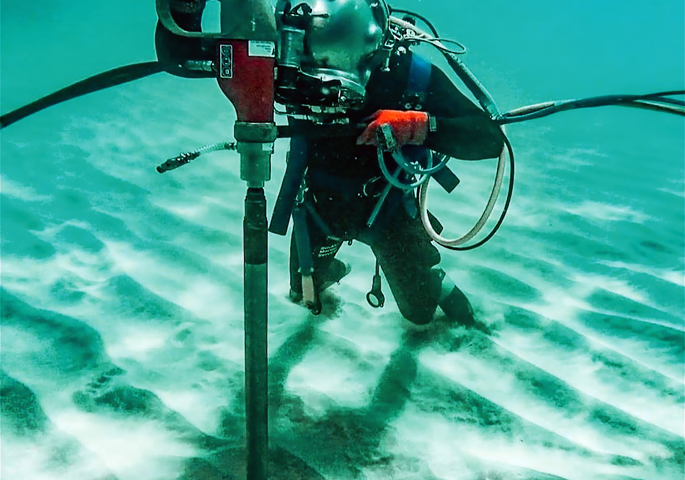

The HCD25-100 Underwater compact core drill is the most powerful and easily manageable handheld underwater core drill available. The HCD25-100 is extremely easy to use and will drill through any material. There is no need for a drill rig. However, the HCD25-100 fits in a standard drill rig with a 60 mm flange for more demanding jobs.

The core drill has a built-in hydraulic torque limiter, ensuring max torque and no kickback if the core bit jams.

Technical data

Item no.

3030150-02

Weight [kg]

7.6

Corebit diameter Ø [mm]

25-100

Oil flow [LPM]

20

Working pressure [bar]

100

Max pressure [bar]

172

Rotation max [rpm]

1500

Sound power level LWa [dB]

84

Vibration level, 3 axis [m/s2]

< 2.5

Download

HCD25-100 Underwater Product Sheet
