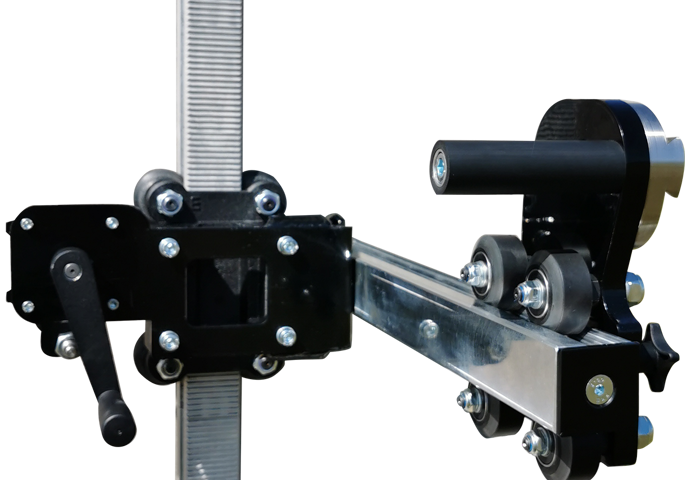

HYCON SawEZ Guide Rail



The SawEZ guide rail is a unique system developed for contractors and semi-professionals to reduce the physical effort when cutting into reinforced concrete or similar.

The versatile system is compatible with our handheld cut-off saws and ring saw: HCS16”, HCS18”, and HRS400. Thanks to the unique adaptor system, you can quickly swap between the saws, giving you a highly versatile solution at the cost of one-tenth of other known wall saw systems.

Using the SawEZ guide rail, you will benefit even more from the well-known hydraulic



power. With only minimal physical effort, you will gain a constant operation at 100% without the operator getting tired – simple as that!

Deeper cuts are easily made using the 18” cut-off saw for a 187 mm precut, then completing the cut using the ring saw up to 300 mm.

The system can be extended as much as you wish, as we offer sections of 1-meter rails that easily connect to your SawEZ guide rail.



Technical data

Item no.
PLEASE NOTE: Adaptor is not included

4040100

Weight w/o saw [kg]

24

Standard rail length [cm]

200

Effective cutting length [cm]

177

Remote trigger

Included

Max cutting depth with HRS400 [mm]

300

Download

SawEZ Product Sheet
