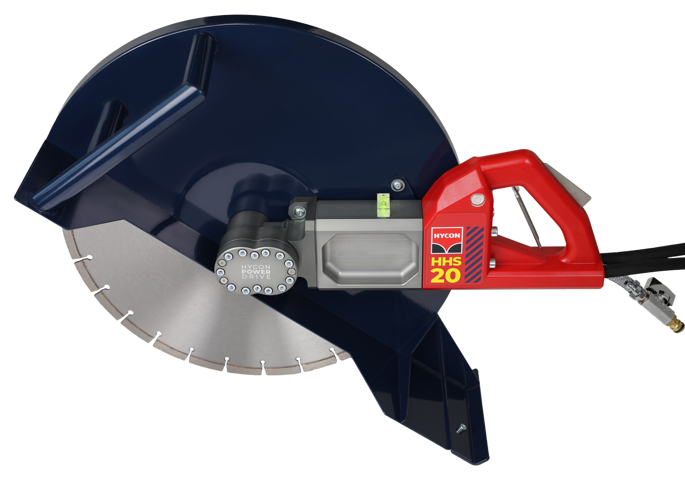

Handheld Hydraulic Handsaw HHS20 *Coming in April 2025*
The HYCON HHS20 handsaw cuts all types of concrete, steel, rock, etc. The HYCON handsaw is a very robust tool for cutting even under extreme conditions. Cutting window openings or other heavy-duty tasks, that heavy machinery cannot reach, is no obstacle for the HHS handsaw.
The hydraulic handsaw from HYCON can be used for horizontal and vertical cutting. The saw features an automatic water activation system, where the saw and water flushing is controlled by a single trigger.
The skid plate with a replaceable rear splash guard and front-mount handle improves user comfort and control, ensuring the perfect cut, every time.
The HYCON Power Drive’s high-quality, purpose-built motor ensures a minimum of service because it doesn’t blow seals. The integrated drive unit design minimizes points of failure, making your tool last much longer.
Item no. Standard
3030530
Item no. Flush cut
3030535
Weight without hose/disc [kg]
Blade diameter
Ø500 mm
Cutting depth [mm]
212
Oil flow [LPM]
30-40
Working pressure [bar]
120
Max pressure [bar]
172
Max return pressure [Bar / PSI]
40 / 580
Rotation speed max [rpm]
2200
Hose whip length [m / feet]
2 / 6'6"
Sound power level LWa [dB]
110
Blade peripheral speed max [m/s]
59
Vibration level, 3 axis [m/s2]
<2.5
