Hydraulic Concrete Power Saw HPS12 *Coming in April 2025*

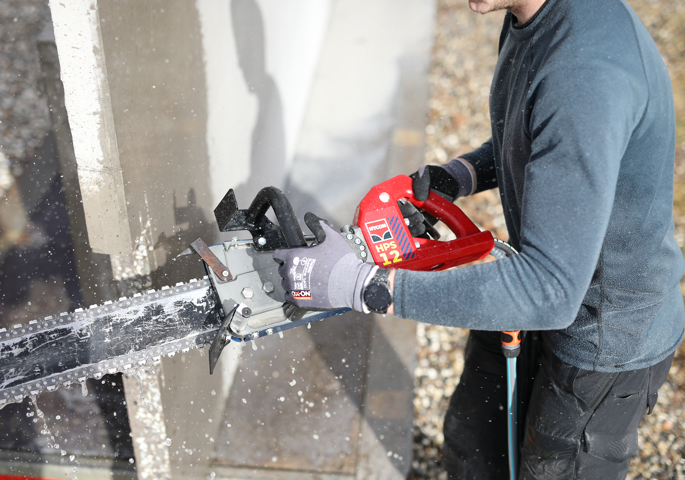

The HYCON HPS12 power saw cuts all types of concrete, steel, rock, etc. The HYCON HPS12 power saw is, with its 46 LPM oil flow, built for very heavy-duty concrete cutting, and it is made for flush cutting as standard.
The body is the shortest on the market, 7 cm shorter than comparable saws. That makes the grip more comfortable for the user and allows the saw to work in confined spaces.
The saw is built with ergonomics in mind, with an integrated wall walker that improves user experience, and with 2-meter whip hoses so the couplings can rest on the floor during the cut, removing the weight from the saw. The saw is easily mountable in our SawEZ guide rail, ensuring the perfect cut, every time.
The HYCON Power Drive’s high-quality, purpose-built motor ensures a minimum of service because it doesn’t blow seals. The integrated drive unit design minimizes points of failure, making your tool last much longer.
Item no.
3030800
Weight without hose/blade [kg]
Body length [mm]
480
Max cutting depth [mm]
630
Oil flow [LPM]
46
Working pressure [bar]
120
Max pressure [bar]
172
Max return pressure [bar]
40
Rotation speed max [rpm]
5800
Chain speed [m/s]
27
Whip hose length [m]
2
Arbor size
5/8"
Sound power level LWa [dB]
109
Vibration level, 3 axis [m/s2]
<2.5
Download
HPS12 Product Sheet
