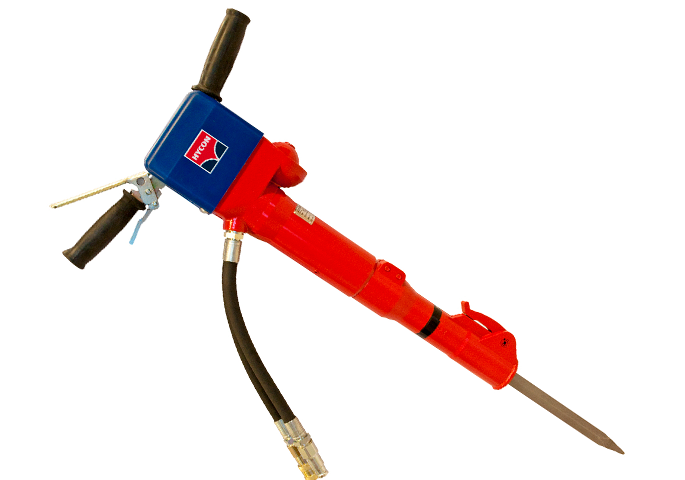

Handheld Hydraulic Breaker HH23
HYCON HH23 is a compact and sturdy breaker with 40 % higher performance than the HH20. It is designed for tough jobs in reinforced concrete, asphalt, ramming, etc.
The HYCON vibration-reduced handle is standard with the HH25, available in 20 and 30-lpm types.
HH23 is especially used by contractors, armies, asphalt companies, municipalities, etc., and is very suitable for the rental business. The standard tool size is hex 25 x 108 mm.
The breaker can be connected to the HPP series and other hydraulic power sources. Other tool sizes are available on request.
Item no. HH23, 20 lpm
1010023
Item no. HH23, 30 lpm
1010123
Weight [kg] 20 / 30 lpm
23.4 / 23.5
Oil flow [LPM] 20 / 30 lpm
20 / 30
Working pressure [bar]
120
Max pressure [bar]
160
Blow frequency [Hz]
1380
Blow energy [joule] 20 / 30 lpm
85 / 95
Sound power level LWa [dB]
108
Vibration level, 3 axis [m/s2]
8.0
Tool size [mm x hex]
25 x 108
CE approval
Download
HH23 Product Sheet
