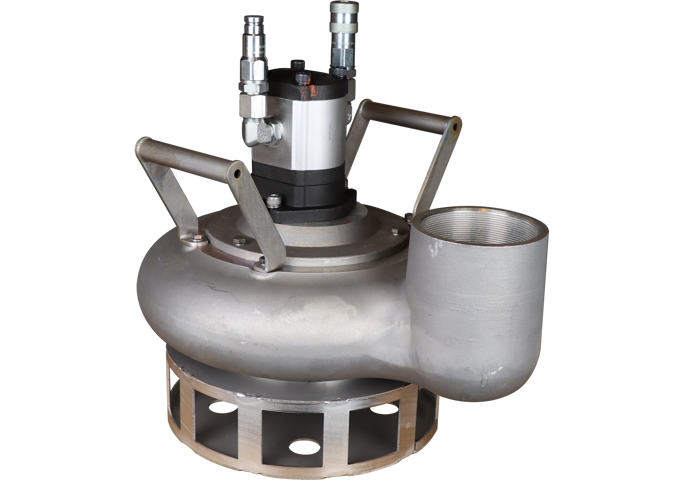

Hydraulic Submersible Pump HWP4

The large HWP4 submersible pump is in a league of its own. With a capacity of up to 180 m³/h, it can be used even in groundwater-lowering applications, where much more extensive and costly pumps are usually used. Paired with, for instance, our 11-kW electric or 18-hp gasoline power packs, you will have a heavy-duty solution with remarkable cost reductions compared to other pumping systems.

The direct drive motor ensures an all-day, everyday operation without damage to the engine or the seals if the pump runs dry. The clever impeller design makes the pump unaffected by particles size up to 74 mm.







Technical data

Item no.
(PLEASE NOTE: Hose incl. coupling is not included)

3030004

Item no.
4" Hose 10m for HWP4 incl. 4" BSP snap-tite coupling

4032699

Weight [kg]

26.7

Oil flow [LPM / GPM]

30-40 / 8-11

Max pressure [bar / PSI]

172 / 2500

Max flow capacity [m3/h / GPM]

180 / 790

Max head [m]

20

Max size of solid particles Ø [mm]

Ø74

Outlet size and connection

BSP 4", female thread

CE approval
