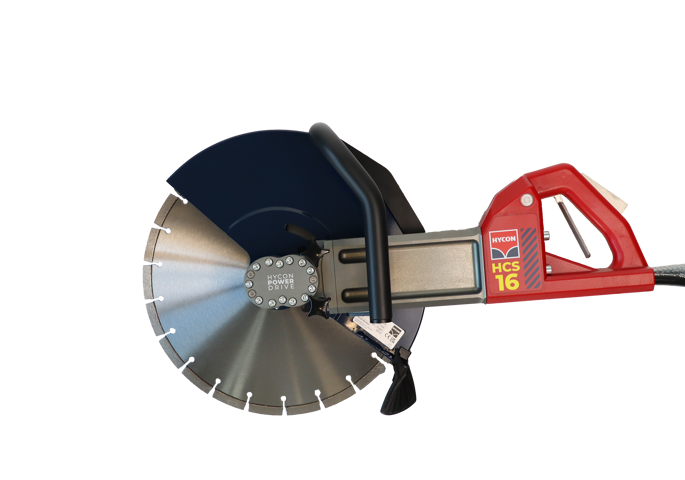

Handheld Hydraulic Cut-off Saw - HCS16 Power Drive
The HYCON HCS cut-off saw cuts all types of concrete, steel, brick wall, asphalt, etc. It is completely unaffected by water and dust, and all parts run in oil. The HYCON HCS saws are built for hard use day after day – without breakdowns. The HCS16 can be used for horizontal and vertical cutting.
The saw stops automatically if the blade jams thanks to the pressure relief valve. The blade stops rotating a maximum of 10 sec. after releasing the trigger, ensuring no injury to the operator.
Our proprietary motor, the HYCON Power Drive, is the strongest motor on the market, and with max 40 bar return pressure, it doesn't blow seals. That means more time at the job, less time in the shop. Flushing water runs through the body and hydraulic motor for extra cooling and to keep all surfaces cold.
Item no.
3030411
Weight without hose/disc [kg]
9.1
Blade diameter [mm]
Ø400
Cutting depth [mm]
162
Oil flow [LPM]
20-40
Working pressure [bar]
120
Rotaion speed max [rpm]
3900
Max pressure [bar]
172
Max return pressure [bar]
40
Sound power level LWa [dB]
108
Vibration level, 3 axis [m/s2]
<2.5
CE approval
Download
HCS16 Product Sheet
