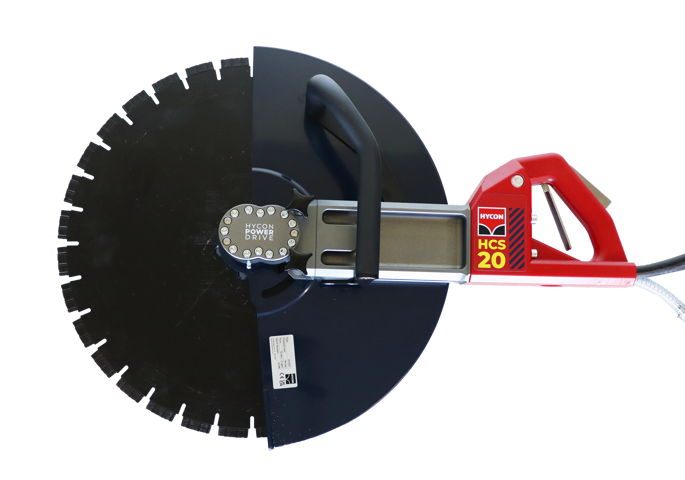

Handheld Hydraulic Cut-off Saw HCS20 Power Drive *Coming in April 2025*
The HYCON HCS cut-off saws cut all types of concrete, steel, brick wall, asphalt, etc. The HYCON cut-off saw is a sturdy saw for cutting even under extreme conditions. It is completely unaffected by water and dust, and all parts run in oil. The HYCON HCS saws are built for hard use day after day – without breakdowns.
The high-quality HYCON Power Drive motor ensures a minimum of service as handles 3x higher return pressure than similar saws with a standard hydraulic motor. The fact that the saw always works and does not require service means higher profit than using, e.g., a gas-powered saw.

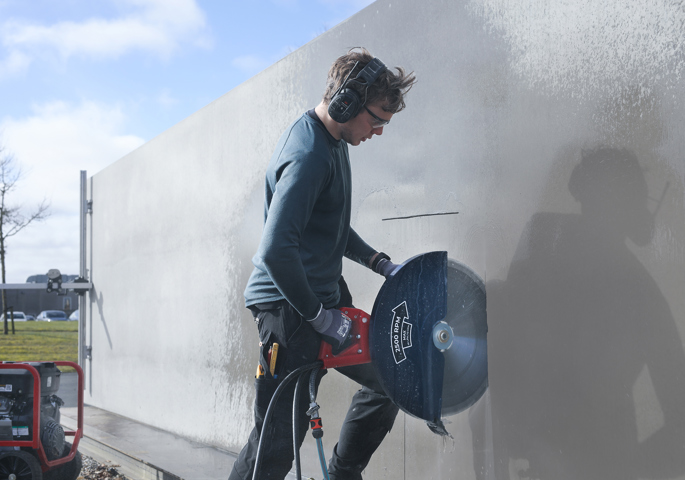

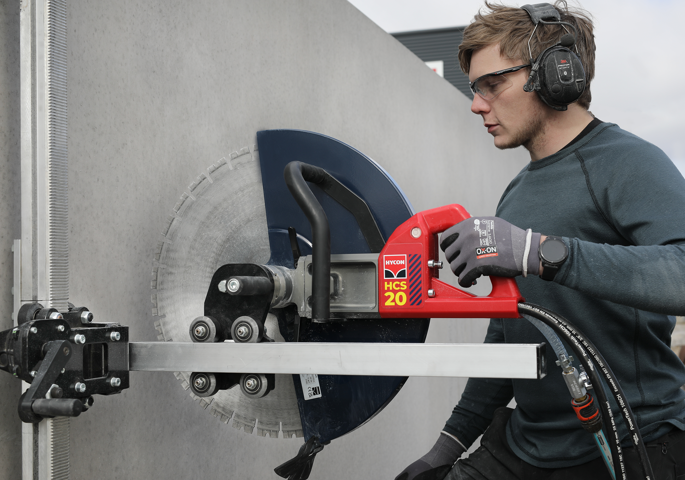

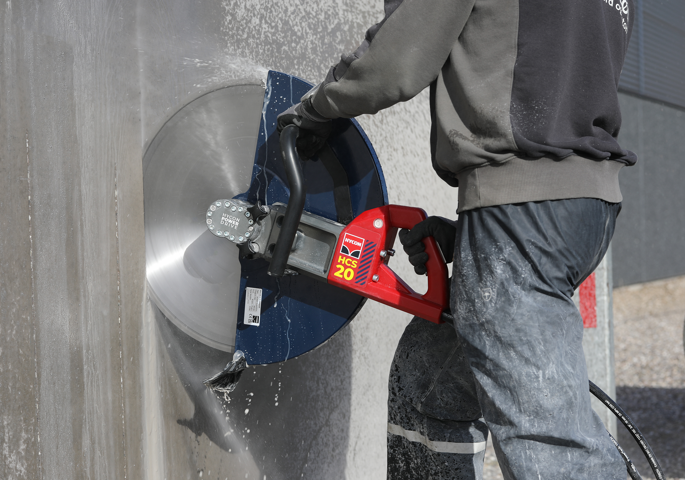

The hydraulic cut-off saw from HYCON can be used for horizontal and vertical cutting. The saw stops automatically if the blade jams thanks to the system pressure relief valve. The blade stops rotating a maximum of 10 seconds after releasing the trigger, ensuring no injury to the operator.
Flushing water runs through the body and hydraulic motor for extra cooling and to keep all surfaces cold. The HCS20 Power Drive has an automatic water trigger system, activating the water flush along with thee saw itself with one trigger.
Item no.
3030500
Weight without hose/disc [kg]
Blade diameter
Ø500 mm
Cutting depth [mm]
212
Oil flow [LPM]
30-40
Working pressure [bar]
120
Max pressure [bar]
172
Max return pressure [Bar / PSI]
40 / 580
Rotation speed max [rpm]
2200
Hose whip length [m / feet]
2 / 6'6"
Sound power level LWa [dB]
110
Blade peripheral speed max [m/s]
59
Vibration level, 3 axis [m/s2]
<2.5
CE approval
Download
HCS20 Product Sheet
