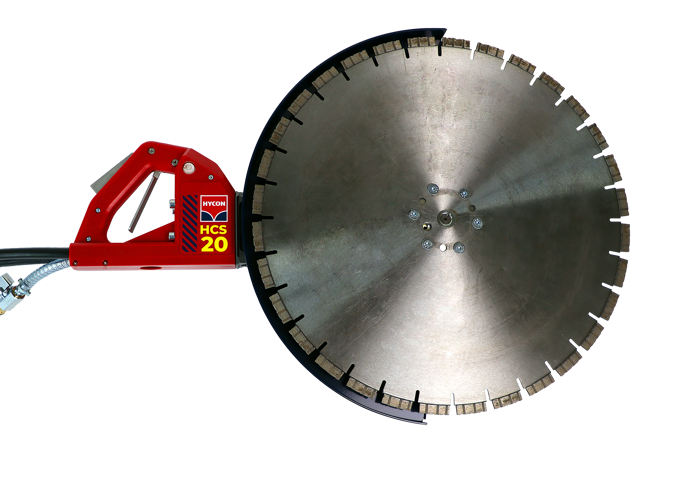

Hydraulic Cut-off Saw - HCS20 Power Drive Flush Cut
The HYCON HCS20 Flush cut-off saw cuts all types of concrete, steel, rock, etc. The HYCON cut-off saw is a very sturdy tool for cutting even under extreme conditions. Cutting in walls, floors, or other concrete surfaces, the HCS20 flush lets you make the perfect cut where the guard would be in the way with a standard cut-off saw.
The high-quality HYCON Power Drive motor ensures a minimum of service as handles 3x higher return pressure than similar saws with a standard hydraulic motor, and that means that we don't blow seals.
The HCS20 can be used for horizontal and vertical cutting. The saw stops automatically if the blade jams thanks to the system pressure relief valve. The blade stops rotating a maximum of 10 seconds after releasing the trigger, ensuring no injury to the operator.
Flushing water runs through the body and hydraulic motor for extra cooling and to keep all surfaces cold. The HCS20 Power Drive has an automatic water trigger system, activating the water flush along with thee saw itself with one trigger.
Item no.
3030515
Weight without hose/disc [kg]
10.6
Blade diameter
Ø500 mm
Cutting depth [mm]
212
Oil flow [LPM]
30-46
Working pressure [bar]
120
Max pressure [bar]
172
Max return pressure [Bar / PSI]
40 / 580
Rotation speed max [rpm]
2500
Hose whip length [m / feet]
2 / 6'6"
Sound power level LWa [dB]
110
Vibration level, 3 axis [m/s2]
<2.5
CE approval
Download
HCS20 Product Sheet
