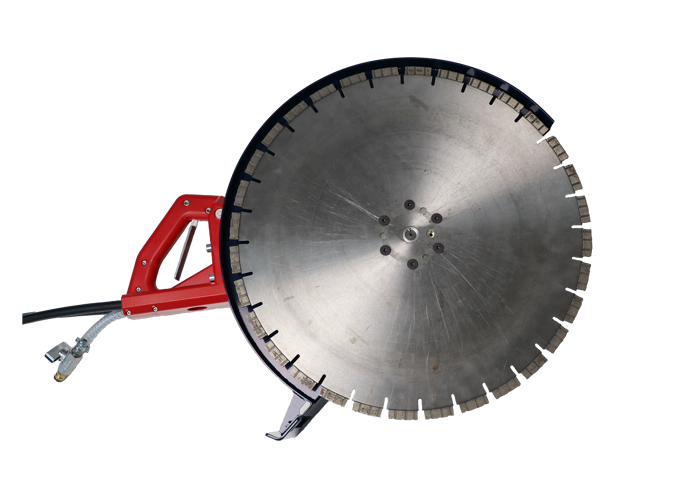

Hydraulic Handsaw - HHS20 PowerDrive
The HYCON HHS20 handsaw cuts all types of materials, including concrete, steel, and rock. The HYCON handsaw is a very robust tool for cutting even under extreme conditions. Cutting window openings or other heavy-duty tasks that heavy machinery cannot reach is no obstacle for the HHS Hydraulic handsaw. The hydraulic handsaw for concrete cutting from HYCON can be used for horizontal and vertical cutting. The saw features an automatic water activation system, where the saw and water flushing are controlled by a single trigger.
The flush cut version is equipped with a blade guard without front cover, letting you cut flush with walls or floors.
The skid plate, featuring a replaceable rear splash guard and front-mount handle, enhances user comfort and control, ensuring a perfect cut every time. The HYCON Power Drive’s high-quality, purpose-built motor ensures minimum service because it doesn’t blow seals. The integrated drive unit design minimizes points of failure, making your tool last much longer.
Item no.
3030535
Weight without hose/disc [kg]
13.3
Blade diameter
Ø500 mm
Cutting depth [mm]
206
Oil flow [LPM]
30-46
Working pressure [bar]
120
Max pressure [bar]
172
Max return pressure [Bar / PSI]
40 / 580
Rotation speed max [rpm]
2200
Hose whip length [m / feet]
2 / 6'6"
Sound power level LWa [dB]
110
Blade peripheral speed max [m/s]
59
Vibration level, 3 axis [m/s2]
<2.5
Download
HHS20 Product Sheet
