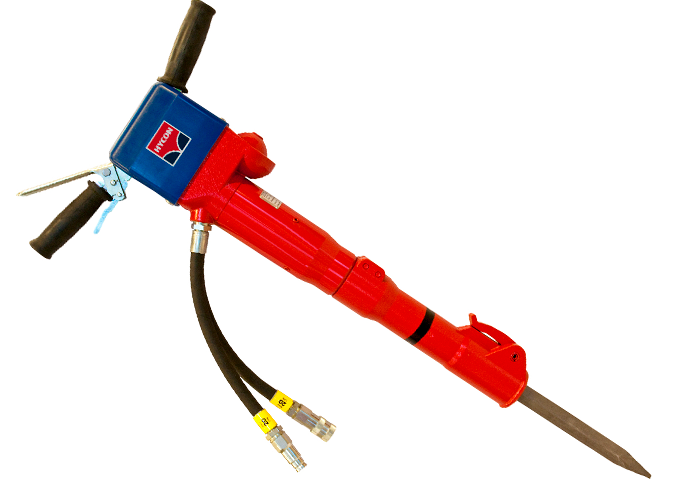

Handheld Hydraulic Breaker HH27

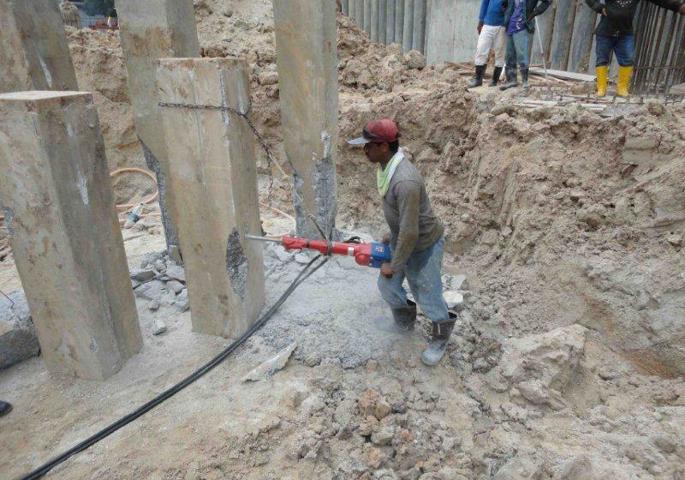

HYCON HH27 is exceptionally strong in coping with all jobs requiring extreme power (75 % higher performance than the HH20). It is designed for breaking reinforced concrete, asphalt, ramming jobs, etc. The HH27 is very efficient with the best power-to-weight ratio of any of our breakers.
HH27 comes as standard with the HYCON vibration-reduced handle and is primarily used by contractors, armies, on railroads, etc.
The standard tool size is hex 32 x 160 mm.
The breaker can be connected to the HYCON power packs and other hydraulic power sources. It is available both as 20 and 30-lpm types.
Item no., hex 28 x 152 mm, 30 lpm
1010527
Item no., hex 28 x 160 mm, 30 lpm
1010427
Item no., hex 32 x 152 mm, 30 lpm
1010127
Item no., hex 32 x 160 mm, 30 lpm
1010027
Weight [kg]
27.4
Oil flow [LPM]
30
Working pressure [bar]
130
Max pressure [bar]
160
Blow frequency [Hz]
1260
Blow energy [joule]
105
Sound power level LWa [dB]
110
Vibration level, 3 axis [m/s2]
10.7
Tool size [mm]
28 (1010528, 1010427), 32 (1010127, 1010027)
CE approval
Download
HH27 Product Sheet
