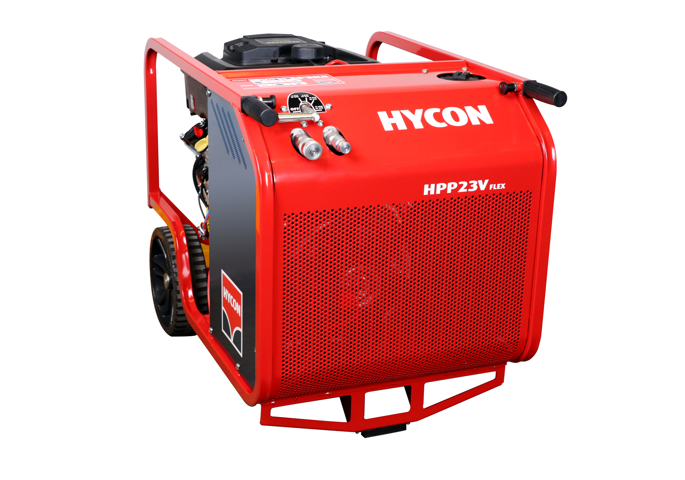

Hydraulic Power Pack HPP23V FLEX – Gasoline
The HPP23V FLEX offers the same features as our HPP18V Flex but with a 23 HP B&S Vanguard gasoline powered engine able to run any tools from 20-46 lpm.

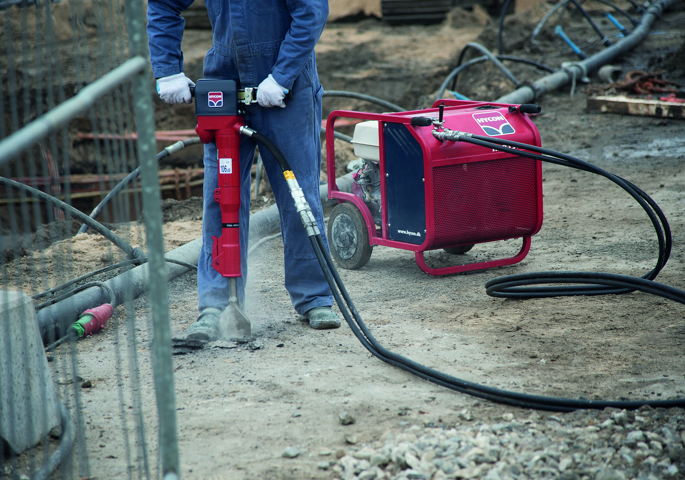

Perfect for large saws, wall saws, and concrete chain saws with a need for 46 lpm. The HYCON HPP23V FLEX hydraulic power pack is designed in accordance with the EHTMA categories C, D, E, and F, which prescribe a performance of 20 lpm, 30 lpm, 40 lpm, and 46 lpm, respectively, at 138 bar.
Not CE approved - Only for sale outside of the EU.
The unique ring cooler design developed by HYCON ensures superior cooling of the power pack and hydraulic oil, ensuring a longer engine life. The effective ring cooler results in a power pack that can work in any climate, all the way from the desert to the artic.
The rigid frame and innovative cooler design make the power pack extremely durable and easy to clean and service. Cleaning the cooler can easily be done with a high-pressure washer.
Item no. HPP23V FLEX
2020523
Dimensions, L x W x H [mm] / Weight [kg]
860 x 610 x 688 / 108
Oil flow [LPM]
20-46
Working pressure [bar]
120
Max pressure [bar]
160
Engine
Vanguard 23 (23 hp), gasoline
Starter
Recoil / Electric
Sound power level LWa [dB]
-
Not CE approved - Only for sale outside of the EU.
