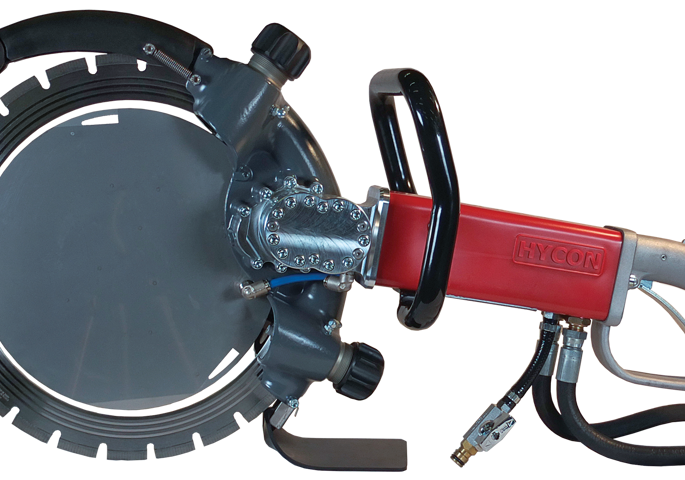

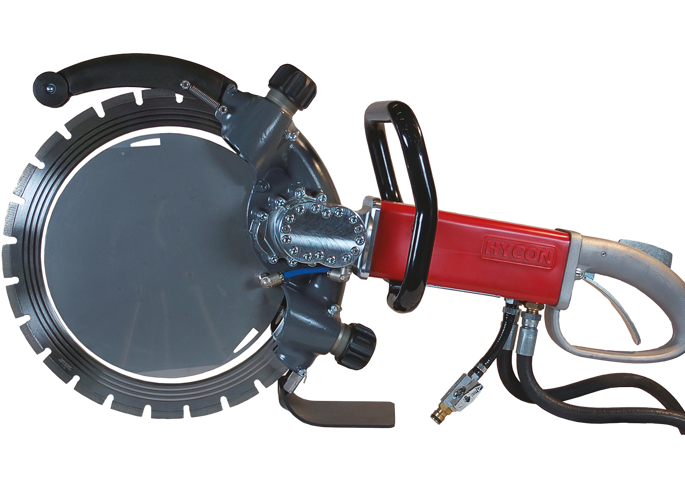

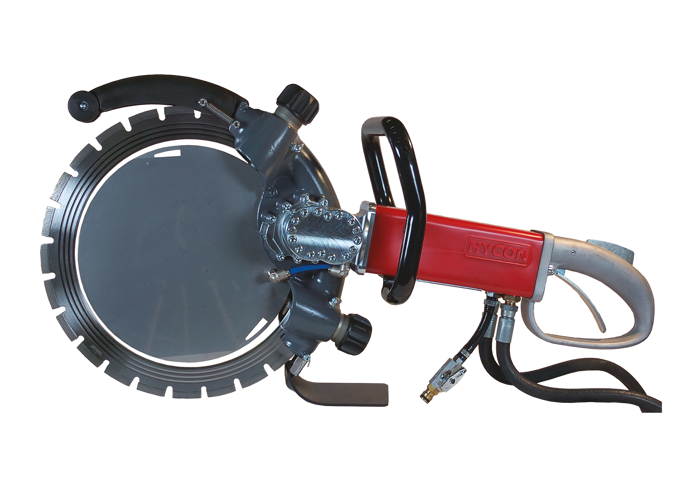

Hydraulic Concrete Ring Saw HRS400
The HYCON handheld hydraulic ring saw offers you the most overall efficient and productive 300 mm deep cutting. Due to its power and cutting depth, it’s a durable and popular choice for all heavy-duty jobs.
With no downtime, the HRS400 is a solid partner and an excellent investment with a state-of-the-art mechanism. All parts run in oil, limiting downtime and keeping the need for service minimal.
Long-lasting wearing parts secure low operation costs.

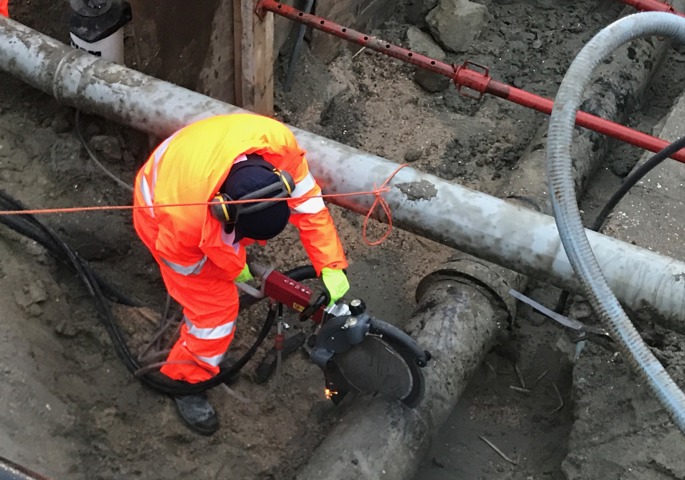

The ring saw is extremely powerful and suitable for bigger construction projects requiring concrete cutting at different locations. Apply 160 bars, and the saw will allow you to cut deep and fast.
Item no.
3030650
Weight without hose/blade [kg]
10.2
Blade diameter
Ø400 [mm]
Cutting depth [mm]
300
Oil flow [LPM]
30-40
Working pressure [bar]
120
Max pressure [bar]
172
Rotation speed max [rpm]
2350
Blade peripheral speed max [m/s]
49
Sound power level LWa [dB]
109
Vibration level, 3 axis [m/s2]
<2.5
CE approval
Download
HRS400 Product Sheet
